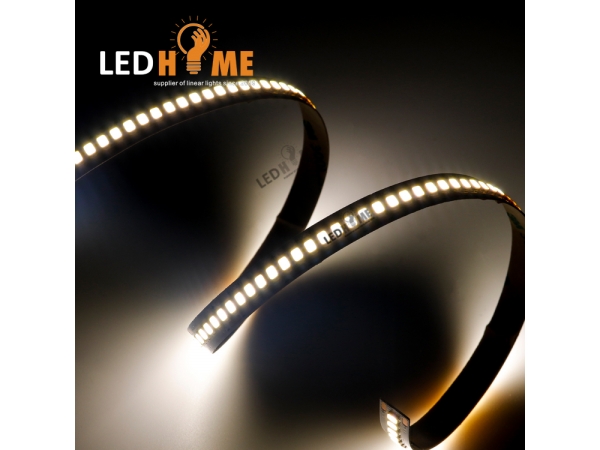

2835 Single Color IC Built in led strip

CC 10m IC Built in led strip

Built-in IC Constant Current 2835 LED Strip 240Leds

LED Type:SMD2835
LED Qty: 240Leds/m
Input Voltage: DC24V-40V
Wattage: 19.2W
CRI: Ra>80 & Ra>95
CCT:  1800K/2200K/2400K/2700K/3000K/4000K/6000K
LM/M:  high efficacy 110-120lm/w
SDCM: <3
Cut Unit: 6Leds/25mm
IP Grade: IP20/IP65/IP67/IP68
Dimensions: 10mm
Max length: 10meter one side driver
Max length: 20meter two side driver

    FLW-2835IC-24240-WW/WH
    LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty Waterproof Grade
    240 19.2W/m 24V 10mm 110-120lm/w 80 6led/25mm 1800-10000K 5 years IP20/ IP62/ IP67/IP68
    240 19.2W/m 24V 10mm 80-90lm/w 90 6led/25mm 1800-10000K 5 years IP20/ IP62/ IP67/IP68

    Why choose ic built in led strip?
    Why choose the strip without resistors?
    1. Decrease the adventure of damaging the resistors if outside onto the PCB. much more stable working ability
    2. Ensure each led working in same current for longer lifetime. With high precision current control, the built-in IC can stably output 10mA,15mA,20mA,25mA,30mA,35mA,40mA and 45mA. Different wattage requirements can be meet.
    3. Same brightness on both ends even running long length (e.g. Length 30meter power in one side)
    4. Cost saving for constant current led strip.
    5. Wide choice for voltage: the LED strip can works well in wide input voltage: DC19V-DC40V, so you don‘t need to worry the bad power supply will shorten the life of the LED strip.
    6. Flexible choice for your led driver from 12v-48v,any your 24v, 36v, 48v driver could work with our 12v ic built in led strip.
    7. Built-in Constant Current IC can assure each LED working under same current even with fluctuant input voltage
    8. max density 300led/meter, other choice: 60led, 80led,90led, 120led, 128led, 240led and 300led per meter.
    9. 10meter without voltage drop, 15meter without voltage drop, 20meter without voltage drop, 30meter without voltage drop.
    10.High Efficacy: 115lm/w – Ra >95.  150lm/w –Ra >80
    11. Color temperature: 1800k-10000k available.
    12. IP rating: non-waterproof IP20, IP62, IP65, IP67, IP68.
