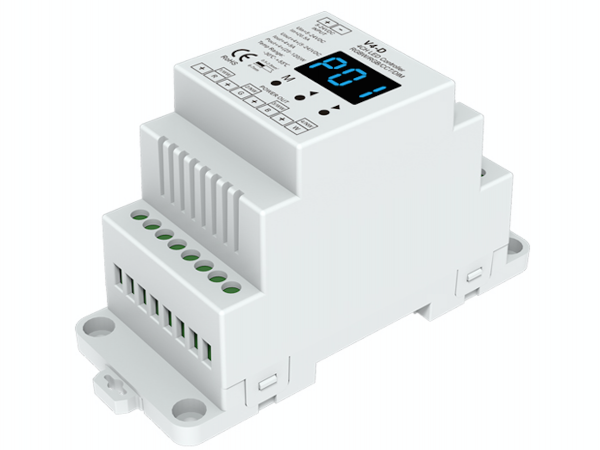

Technical parameters

● Input voltage: 5-24VDC

● Output type: PWM constant voltage

● Output current: 4CH, 5A/CH

● Output power: 100-480W

● Grey levels: 4096/CH

● Dimming range: 0-100%

● Remote distance: 30m

● Working temperature: -30℃~55℃

● Dimension: L115×W48×H67mm

● Weight: 120g

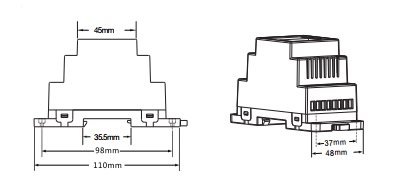

Dimension

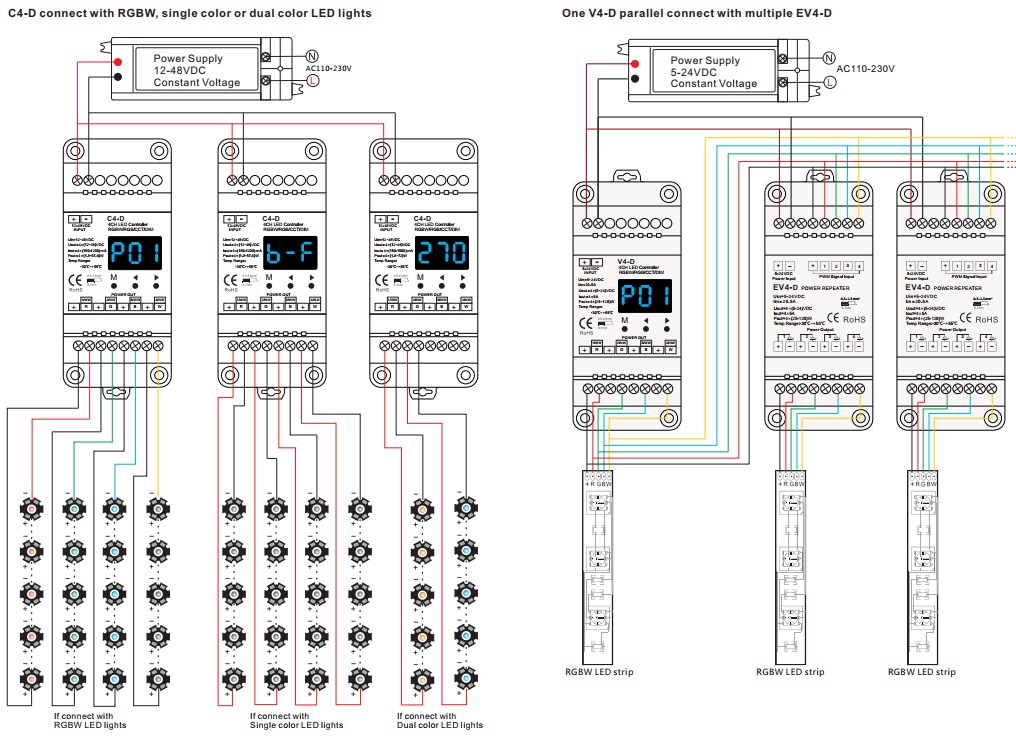

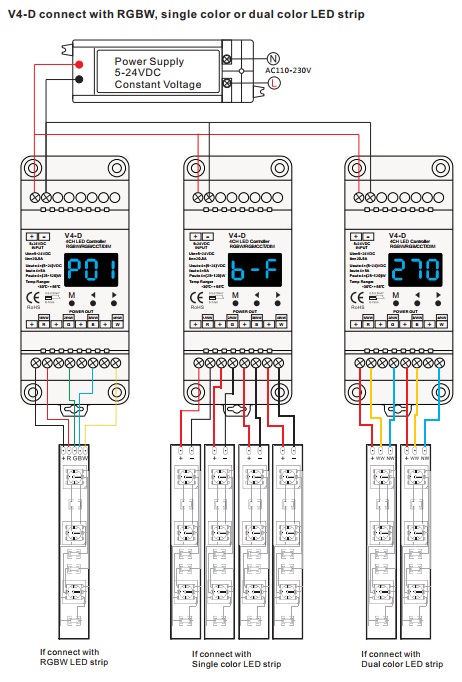

Wiring diagram




Power supply select guide


For V4-D / EV4-D, LED power supply voltage and power select :
● 5V lamp, Input 5V power supply, each channel can load 0~25W,
● 12V lamp, Input 12V power supply, each channel can load 0~60W,
● 24V lamp, Input 24V power supply, each channel can load 0~120W,
    The power supply power must larger than load power 20%.




For C4-D, LED power supply voltage select:
● Input 48V power supply, each channel can series connect 1~13pcs LED,
● Input 36V power supply, each channel can series connect 1~10pcs LED,
● Input 24V power supply, each channel can series connect 1~6pcs LED,
● Input 12V power supply, each channel can series connect 1~3pcs LED.



Safety information

1. The product shall be installed and serviced by a qualified person.
2. The product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used comply with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
