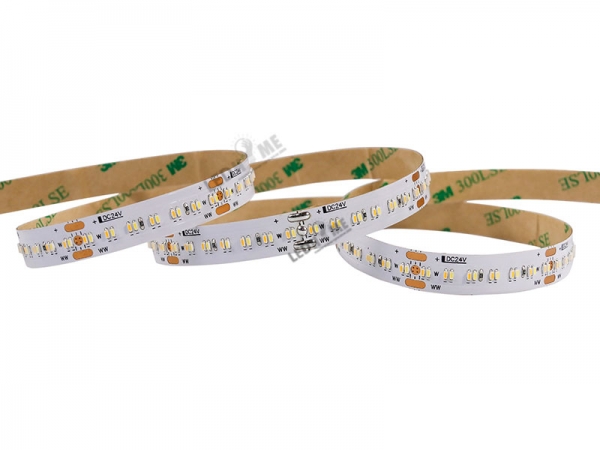

1808SMD LED strip

1808 364LED CCT stripi

LED Type: 1808SMD
LED Qty: 364per meter
Input Voltage: DC 24V
Wattage: 20W/M
CRI: Ra80, Ra90
SDCM: 3step MacAdam ellipse
IP Rate: IP20, I62, IP65, IP67, IP68
Dimensions:10x5000mm per roll
Cutting Unit: 14LED/38.46mm;
Control: 0-10V/1-10V/DMX/DALI/Triac
Certificate: CE, RoHs
Warranty: 5years

    Product Feature:

    P/N: FL1808-CV24364-10CCT
    Brand: Epistar or branded chip
    Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
    Beam Angle: 120° Emitting
    Lifetime: LM80- 50000Hrs
    Operating Temp. -20 ~ 45°C
    PCB: 2Oz Cooper/ double-side FPCB
    Mounting: Imported 3M tape 300sle
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Packing: 300meter/Ctn. (68x26x28cm)

    Technical Dimension:




    Product Specification:

    LED/M Power Voltage Width Lumen CRI Cut length CCT Length
    (two side Feed)
    60 12W/m 12/24V 8/10mm 115-129lm/w 80 3led/50mm
    6led/100mm
    2700k, 3000k, 4000k, 6500k 5m/pcs 16.40ft/pcs
    60 12W/m 12/24V 8/10mm 111-130lm/w 90 3led/50mm
    6led/100mm
    2700k, 3000k, 4000k, 6500k 5m/pcs 16.4ft/pcs


    Tips: other customized color or to build your customized Bin code system pls contact us further.

    LED Strip Solution:





    Note:
    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
